Products Description

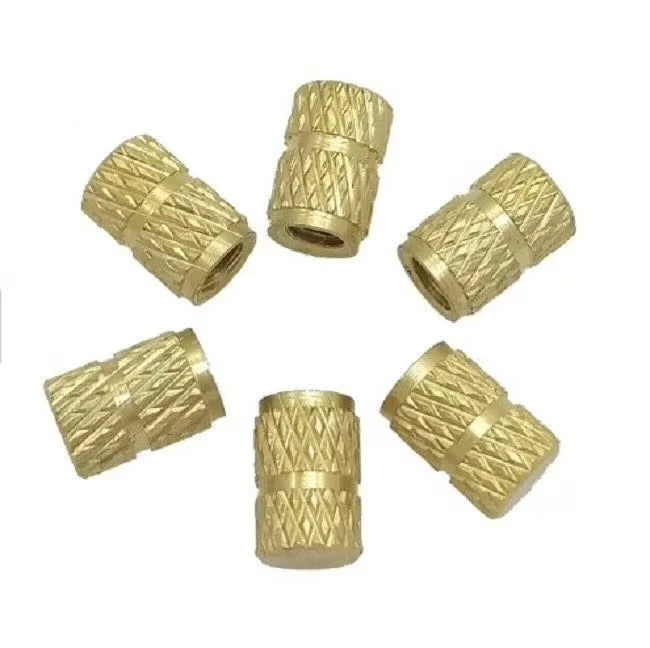

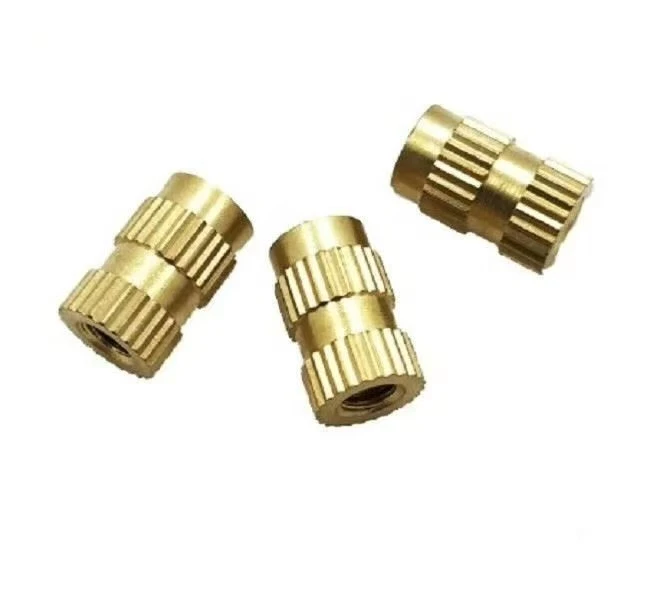

One of the main advantages of M3 thread inserts is that they can be used with virtually any type of plastic material, including nylon, PVC, ABS, and more. This makes them an incredibly versatile solution for a wide range of applications.
In addition, M3 thread inserts are designed to be self-tapping, which means they can create their own threads as they are installed. This makes it easy to create precise, secure threads without the need for additional equipment or tools.
|
Material |
Brass, |
|
Finish |
Zn/Ni/Tin/Au plating. |
|
Insert Methods |
By Ultrasonic,Heat staking,Insert Molding,Cold press-in Methods |
|
Quality Control |
Follow Drawing Spec |
|
Management System |
ISO9001:2008 |
|
Certification |
SGS,RoHS,Material Certication, |
|
Lead Time |
5-10 working days |
|
Samples |
Free samples if we have stock. |
|
Delivery term |
By DHL,UPS,TNT,FedEx,EMS,By Ocean,By Air |
|
Production Capability |
Auto-lathe turning:ODΦ0.5-20mm,Tol.±0.01mm |
|
CNC lathe turning:ODΦ0.5-250mm,Tol.±0.005mm |
|
|
CNC Milling:800x600mm(LxW),Tol.±0.05mm |
|
|
Grinding:Tol.±0.002mm |
|
|
Screw heading & rolling:Metric 0.8-M6,Unified Imperial#0-1/4'' |
|
|
Stamping:200T max |
|
Thread Size |
L |
L1 |
T |
D1 |
D2 |
H+0.1 |
W |
|
M2.5 |
6.5 |
4.0 |
- |
4.0 |
- |
4.0 |
2.4 |
|
M2.5 |
6.0 |
3.6 |
0.8 |
4.0 |
5.5 |
4.0 |
2.4 |
|
M2.5 |
7.0 |
3.6 |
0.8 |
4.0 |
5.5 |
5.565 |
2.4 |
|
M3 |
6.5 |
4.0 |
- |
4.0 |
- |
4.0 |
2.4 |
|
M3 |
6.5 |
4.0 |
- |
4.8 |
- |
4.8 |
2.9 |
|
M3 |
6.0 |
3.5 |
0.8 |
4.8 |
6.3 |
4.8 |
2.9 |
|
M3 |
7.0 |
3.5 |
0.8 |
4.8 |
6.3 |
4.8 |
2.9 |
|
M3.5 |
8.0 |
5.0 |
- |
4.8 |
- |
4.8 |
2.9 |
|
M3.5 |
7.5 |
4.7 |
0.8 |
4.8 |
6.3 |
4.8 |
2.9 |
|
M3.5 |
8.5 |
4.7 |
0.8 |
4.8 |
6.3 |
4.8 |
2.9 |
|
M4 |
9.5 |
6.5 |
- |
5.5 |
- |
5.5 |
3.3 |
|
M4 |
8 |
5.0 |
- |
5.5 |
- |
5.5 |
3.3 |
|
M4 |
7.5 |
4.4 |
0.8 |
5.5 |
7.0 |
5.5 |
3.3 |
|
M4 |
8.5 |
4.4 |
0.8 |
5.5 |
7.0 |
5.5 |
3.3 |
|
M5 |
11.0 |
7.5 |
- |
6.5 |
- |
6.5 |
3.9 |
|
M5 |
8.0 |
4.5 |
- |
6.5 |
- |
6.5 |
3.9 |
|
M5 |
8.5 |
5.0 |
0.8 |
6.5 |
8.0 |
6.5 |
3.9 |
|
M5 |
9.5 |
5.0 |
0.8 |
6.5 |
8.0 |
6.5 |
3.9 |
|
M6 |
12.5 |
8.5 |
- |
8.0 |
- |
8.0 |
4.8 |
|
M6 |
11.0 |
7.0 |
0.8 |
8.0 |
10.0 |
8.0 |
4.8 |
|
M6 |
12.0 |
7.0 |
0.8 |
8.0 |
10.0 |
8.0 |
4.8 |
|
M8 |
16.0 |
11.0 |
- |
11.0 |
- |
11.0 |
6.6 |
