Products Description

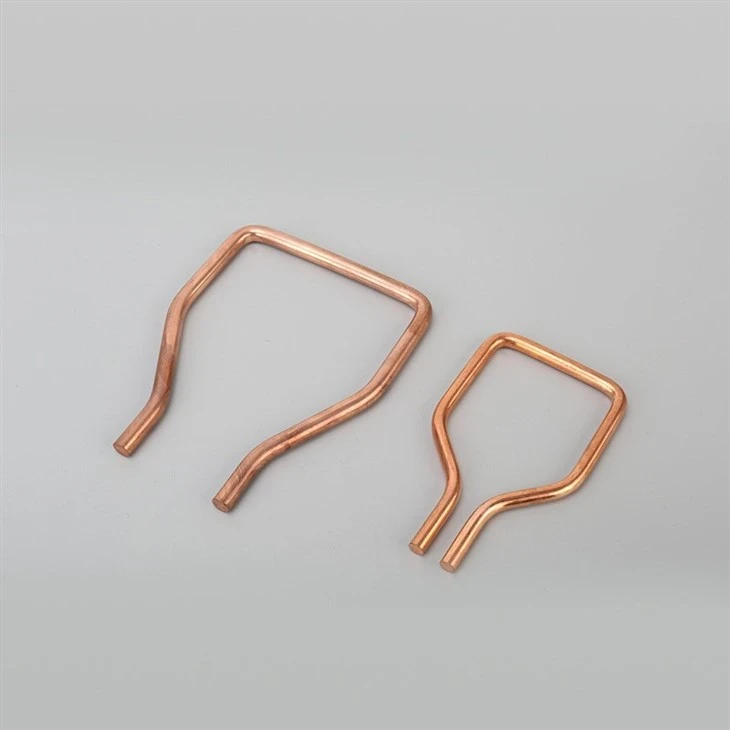

Custom Copper Wire Formed Connector Loops and Bent Conductive Links for Electrical Assemblies

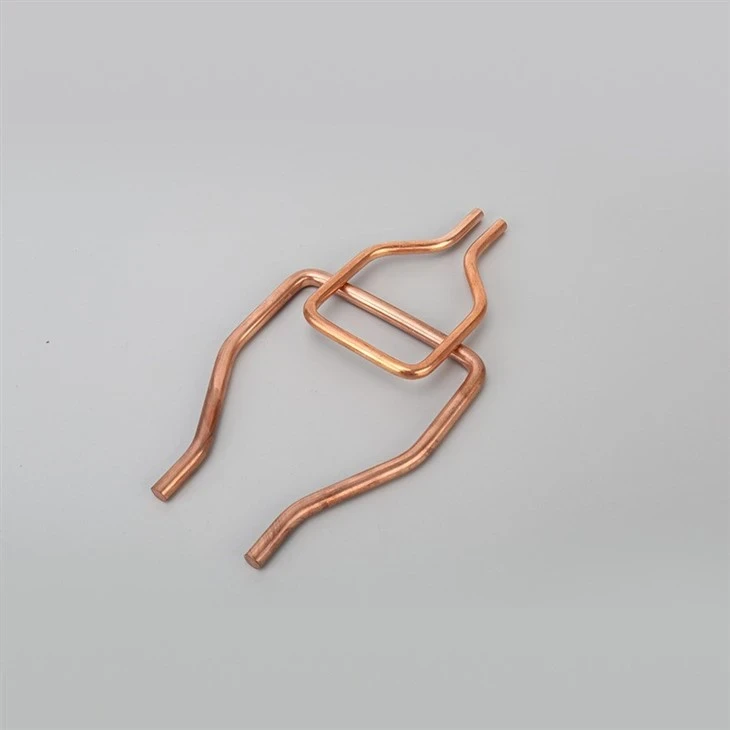

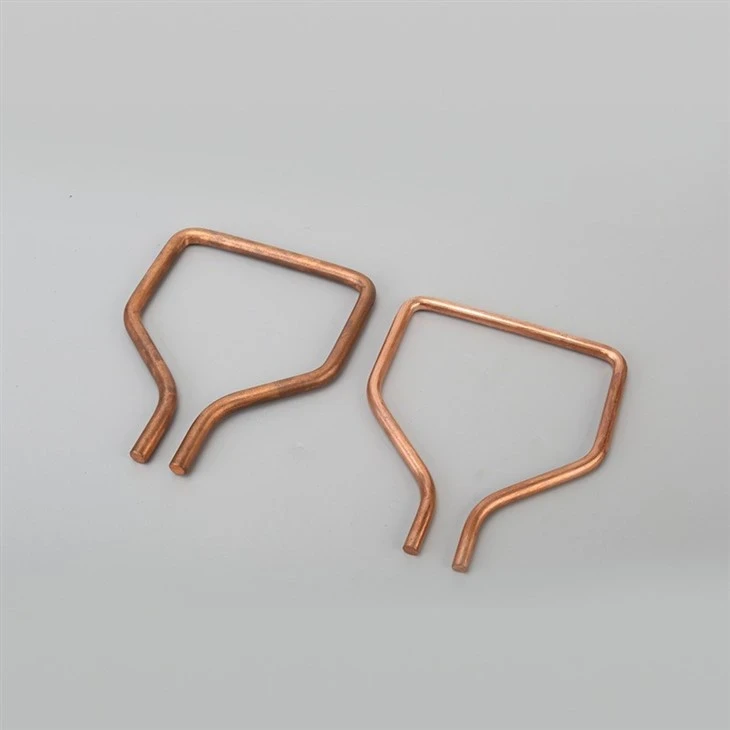

This component is formed from solid copper wire into a defined two-dimensional or three-dimensional profile. Its open-loop shape may be used as a conductive link, terminal loop, contact element or custom connector within an electrical assembly.
The geometry is created to fit the customer's available installation space. Square, rectangular, trapezoidal and irregular profiles can be formed without introducing the additional joints required by multi-piece assemblies.
Unlike conventional terminals selected mainly by thread or cable size, this product is controlled by its complete outline. The relationship between wire diameter, bend radius, segment length and end position determines whether it fits the mating assembly correctly.
A dimensioned drawing, CAD profile or physical sample is therefore recommended for quotation.
| Item | Available Options |
|---|---|
| Product Type | Copper wire formed loop / conductive link |
| Material | Copper, brass, phosphor bronze or specified alloy |
| Wire Section | Round, square or custom |
| Profile | Rectangular, polygonal, open loop or custom |
| Manufacturing Process | Cutting, wire bending, forming and finishing |
| Wire Diameter | Custom according to drawing |
| Bend Radius | Based on material and wire size |
| End Configuration | Straight, angled, flattened, drilled or custom |
| Surface Finish | Bare copper, tin plated, nickel plated or custom |
| Heat Treatment | Annealing or stress relief when required |
| Production Basis | Drawing, CAD profile or physical sample |
| Electrical Performance | Subject to material, cross-section and validation |
| Parameter | Required Information |
| Wire Diameter | Nominal diameter and tolerance |
| Overall Width | Maximum outside width |
| Overall Height | Maximum outside height |
| Segment Lengths | Length between individual bends |
| Bend Angles | Angle at each forming position |
| Inside Radius | Required or minimum acceptable radius |
| End Spacing | Distance between the two open ends |
| End Direction | Parallel, angled, offset or custom |
| Flatness | Permitted distortion from the reference plane |
| Surface Condition | Bare, polished, plated or custom |
Custom Copper Wire Formed Connector Loops: Precision Bending & Conductive Design
Manufacturing Considerations
Copper is highly formable, but very small bend radii may create surface thinning or shape variation. Springback, tool marks and end-position tolerance should be evaluated according to material condition and wire diameter.
For conductive applications, the contact area, plating and final electrical performance must be confirmed within the complete customer assembly.
RFQ Sentence
Please provide the drawing or sample with the copper grade, wire diameter, complete profile dimensions, bend radii, end spacing, flatness, surface finish, electrical requirement and order quantity.
Content Style / Differentiation Point
Profile-geometry and wire-forming style. This page focuses on bend sequences, loop outline, end spacing and conductive use, distinguishing it from machined terminals, stamped contacts and conventional cable lugs.
