Tin Plated Brass Terminal

Tin Plated Brass Terminal

Details:
Products Description This tin plated brass terminal is a custom brass component with a tin plated surface finish. It is suitable for a variety of electrical and electronic connection applications where dependable conductivity and oxidation resistance are required. Custom Size The dimensions of...

Send Inquiry
Description
Send Inquiry

Product Overview



product-1024-1024

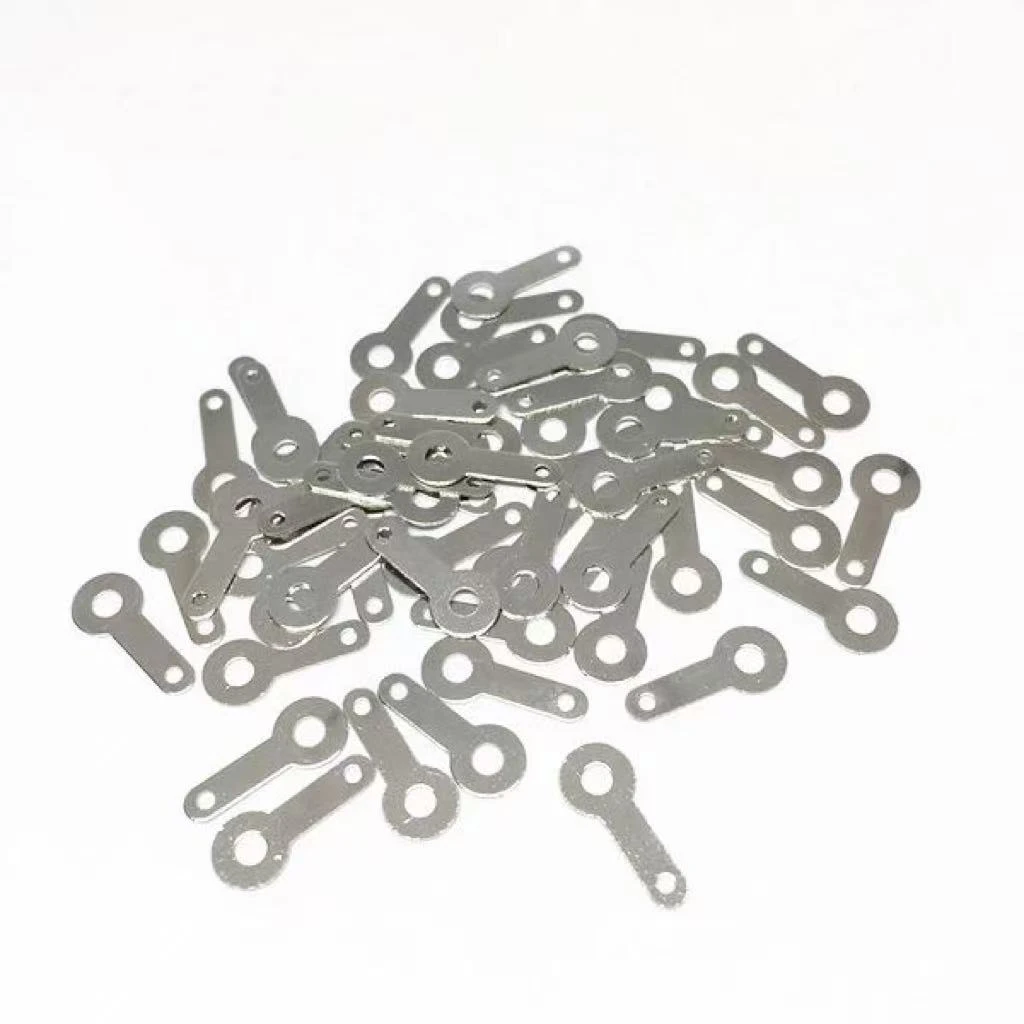

This tin plated brass terminal connects wires securely inside electrical assemblies, carrying current steadily across low-to-medium voltage circuits. The brass base conducts electricity well; the outer tin layer keeps the metal surface clean during storage and assembly, so installers get reliable contact resistance over long operating periods.

Technical Specifications

Base Material

C2680 / C36000 grade brass strip, precision-stamped to tolerance

Surface Plating

Electroplated bright or matte tin, 3–8 μm thickness

Electrical Rating

Suitable for low-to-medium power distribution circuits

Operating Temperature

-40°C to 120°C continuous service



Core Advantages



Consistent Conductivity

Solid brass cores carry electrical loads with minimal voltage drop, keeping heat buildup low.

Oxidation Protection

The tin coating shields the copper-zinc alloy from moisture and humid air; the terminal resists tarnishing before and after installation.

Mechanical Grip

Stamped contact geometries hold wires tightly, preventing loose joints under equipment vibration.



Tin-Plated Brass vs Bare Brass Terminals

Corrosion Resistance

Bare brass oxidizes quickly in damp environments, whereas a tin plated brass terminal holds up against moisture and mild industrial fumes.

Solderability

Tin wets easily with standard solder alloys, making assembly faster than soldering onto untreated brass.

Contact Stability

Protective plating prevents surface film buildup, so electrical resistance stays stable across years of service.



Production Process



High-speed progressive stamping dies form each terminal from calibrated brass coils; automated reel-to-reel electroplating lines then apply an even tin layer. Technicians check dimensional tolerances with optical gauges and verify plating thickness via X-ray fluorescence testing before packing.





Material & Surface Treatment Options

Core Alloys: Standard yellow brass or high-tensile phosphor bronze upon request.

Plating Finishes: RoHS-compliant bright tin for easy soldering, or matte tin to reduce whisker growth in tight housings.



Application Scenarios





Panel builders and OEMs install these terminals in power distribution boxes, household appliances, automotive wire harnesses, and industrial control cabinets.





Frequently Asked Questions




Q: What is the minimum order quantity (MOQ)?

A: Standard stocked items ship in small carton quantities, while custom stamped dimensions require an MOQ based on tooling setup; send your target volume for a quote.

Q: Can you produce custom dimensions?

A: Yes, our tooling workshop fabricates custom profiles, hole sizes, and plating thicknesses directly from your 2D/3D drawings or physical samples.



product-3840-2160
product-3840-2160
