Product Overview

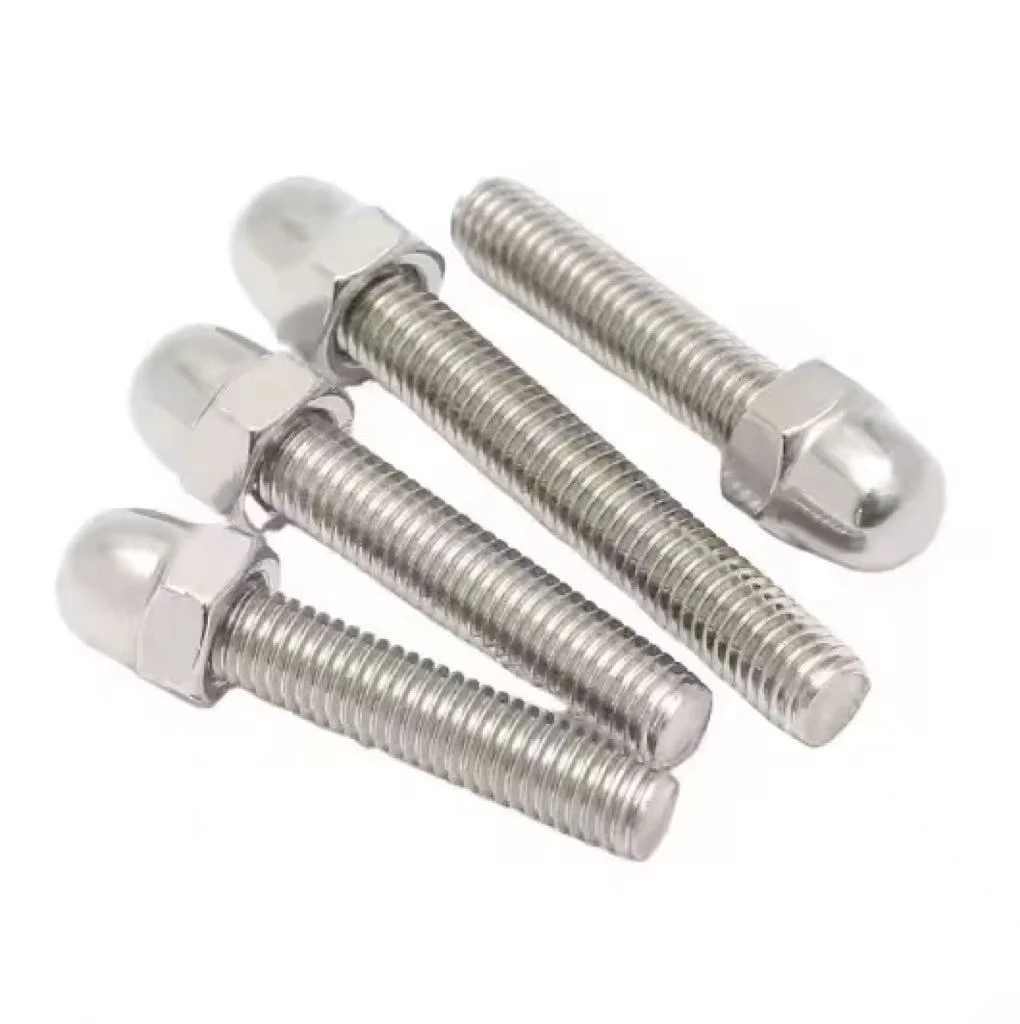

Hexagon dome ball head bolts combine a standard hexagon wrench fit with a smooth, rounded dome head that eliminates the sharp edges of conventional fasteners. Where exposed bolt heads could scratch operators, snag cables, or spoil a finished surface, the rounded profile delivers a safe, clean, and refined appearance instead.
This makes the dome ball head bolt the fastener of choice for medical equipment, high-end display cabinets, and exposed decorative installations - anywhere visible hardware must look as good as it performs, with no compromise on torque or clamping strength.
Technical Specifications
|
Item |
Specification |
|
Product Name |
Hexagon Dome Ball Head Bolt |
|
Thread Standard |
Metric M3–M16, coarse pitch per ISO 261 |
|
Thread Length |
Full thread or partial thread (grip length on request) |
|
Head Profile |
Rounded dome head; head diameter approx. 1.5–1.8× thread diameter, dome height approx. 0.6× head diameter |
|
Driving |
Standard hex wrench / socket |
|
Materials |
Stainless steel 304/316, carbon steel (zinc plated), brass |
|
Surface Finish |
Polished, zinc plated, chrome plated, powder coated |
|
Customization |
OEM/ODM produced to customer drawings |
|
MOQ |
negotiable for trial orders |
Core Advantages
Injury-Free Dome Head
Smooth rounded profile with no sharp corners - protects operators, patients, and nearby cables from scratches and snags.
Refined Exposed Finish
The polished dome reads as part of the product design, not as workshop hardware - ideal for visible fasteners on premium equipment.
Standard Wrench Fit
The hexagon body keeps full torque transmission and fast installation with ordinary wrenches and sockets.
Corrosion-Resistant Options
Stainless 304/316 and passivated or plated carbon steel hold both finish and strength in demanding environments.
Dome Ball Head Bolt vs Standard Hexagon Bolt
| Comparison Dimension | Dome Ball Head Bolt | Standard Hexagon Bolt |
|---|---|---|
| Head Edge | Rounded dome, no sharp corners | Sharp hex corners |
| Personnel Safety | No scratch or snag risk | Risk of scratches and caught clothing |
| Cable Protection | Smooth surface will not abrade insulation | Sharp edges can damage cable jackets |
| Exposed Appearance | Decorative, refined finish | Industrial look |
| Wrench Access | Standard hex drive | Standard hex drive |
Professional Production Process
1.Cold Heading → 2. Dome Head Profiling → 3. Thread Rolling → 4. Grinding & Deburring → 5. Polishing / Buffing → 6. Passivation or Plating
Each step is quality-checked to keep the dome profile uniform and the surface free of burrs and machining marks.
Material & Surface Treatment Options
Stainless Steel 304/316
Excellent corrosion resistance for medical and humid environments
Polished to a bright, uniform finish
Optional electropolishing and passivation
Carbon Steel (Zinc Plated)
High strength at economical cost
Zinc, chrome, or powder-coated finishes
Suitable for indoor equipment and fixtures
Brass
Warm decorative tone for premium displays
Naturally corrosion resistant
Can be polished or lacquered
Custom materials and coatings are available per drawing.
Application Scenarios
Medical Equipment
Rounded heads remove scratch risks on patient-facing devices, carts, and housings, while smooth surfaces are easy to wipe down and disinfect.
High-End Display Cabinets
Polished dome heads blend into premium retail, museum, and showroom fixtures instead of standing out as hardware.
Exposed Decorative Equipment
Railings, signage, and custom machinery where visible fasteners are part of the design language.
Frequently Asked Questions
Q: Why choose a dome ball head instead of a standard hexagon head?
A:The dome head removes the sharp corners of a standard hex bolt, eliminating scratch and snag risks and giving exposed fasteners a clean decorative finish. Wrench installation remains the same.
Q: Which materials and finishes can I choose from?
A:Stainless steel 304/316, carbon steel with zinc plating, and brass, with polished, chrome plated, powder coated, or passivated finishes. Custom combinations are supported.
Q: Can you produce non-standard sizes or head dimensions?
A:Yes. We produce to customer drawings and technical parameters, and samples are available for verification before bulk production.
Q: How do I get a quote?
A:Send your thread size, material, finish, and quantity - a tailored quotation is returned within 24 hours.
